The instrument is a high reliability digital multimeter with stable function and performance. The meter uses LCD display for clear reading and more convenient use. This instrument has the function of measuring DC voltage and AC voltage, DC current and AC current, resistance, capacitance, diode, transistor, continuity test, Live (mains power line judgment); The whole machine with A/D conversion as the core. Ideal tool for laboratories, factories, radio enthusiasts and home use.

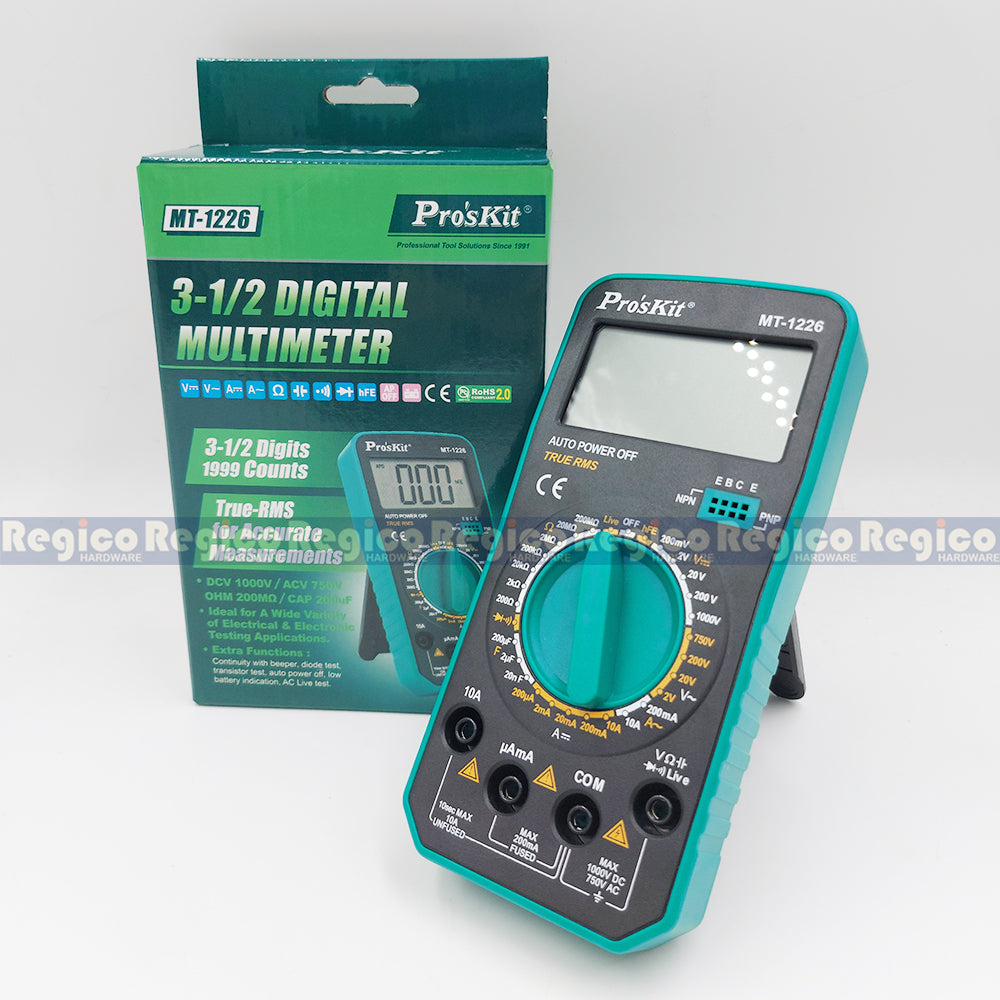

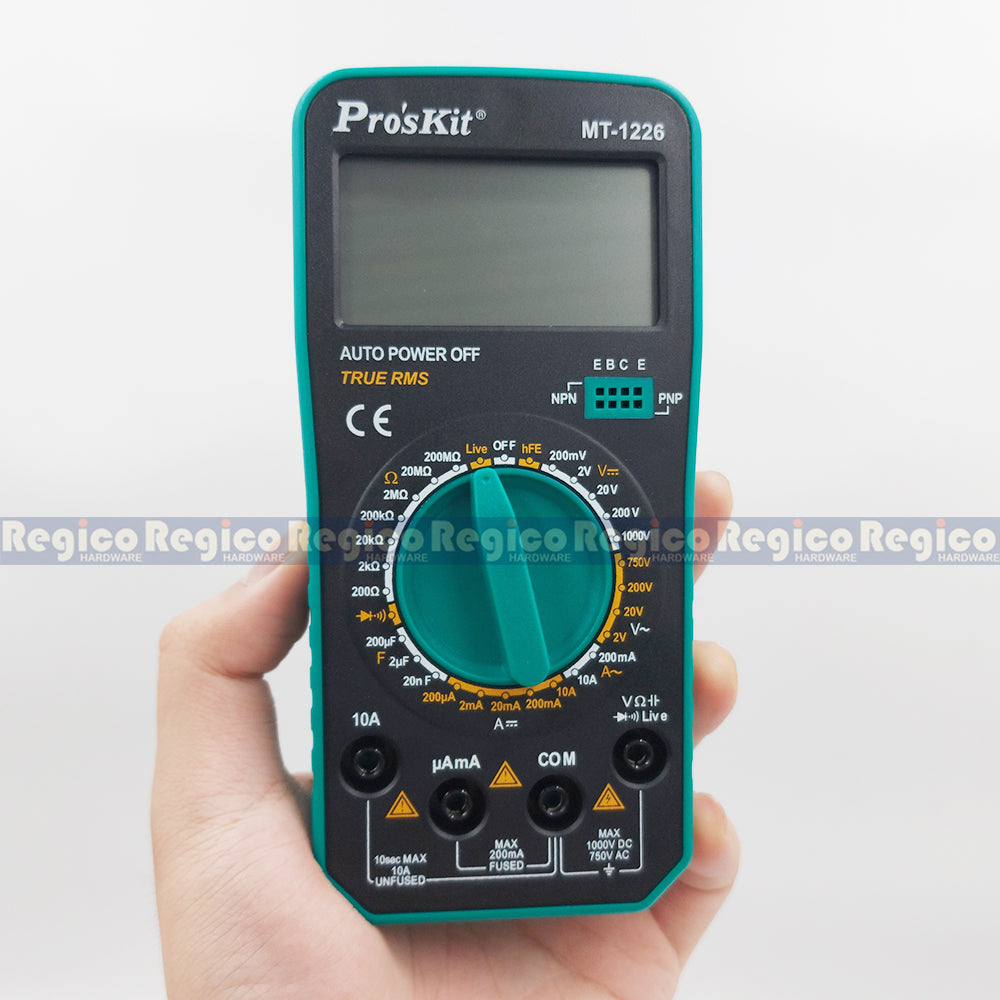

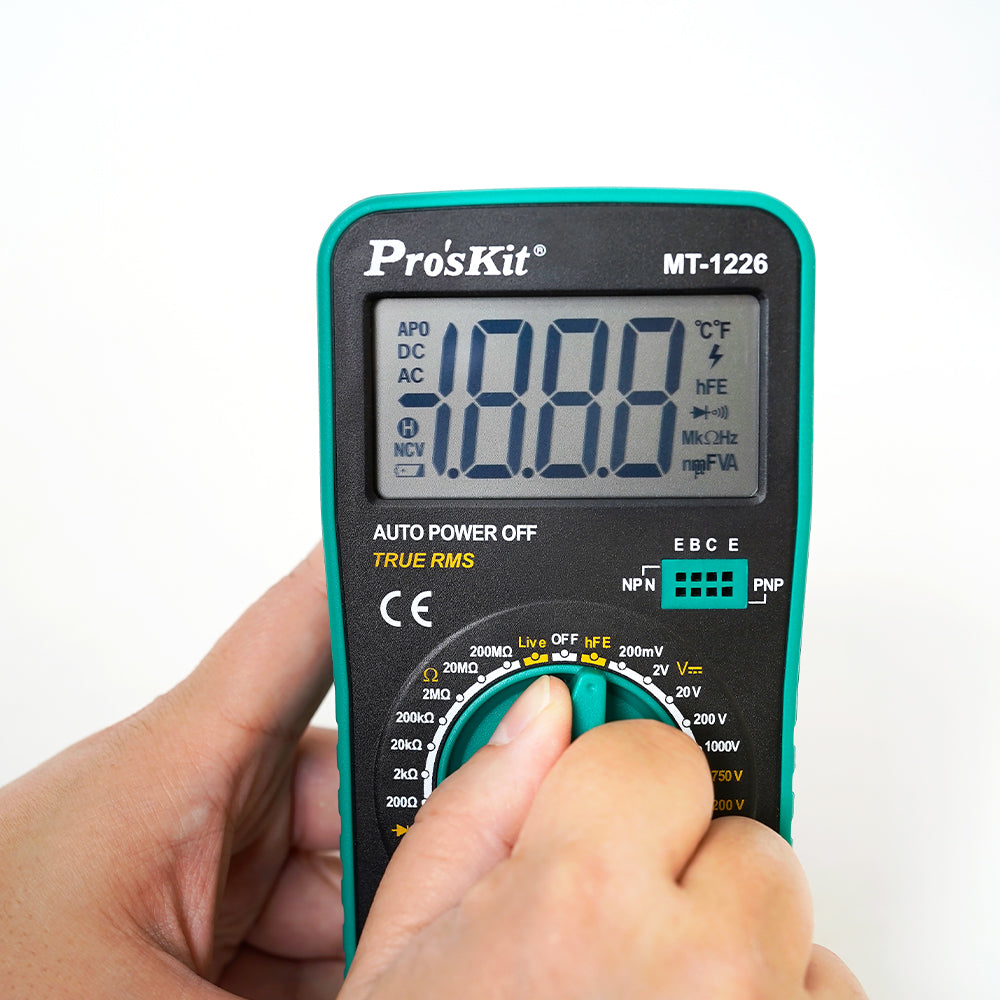

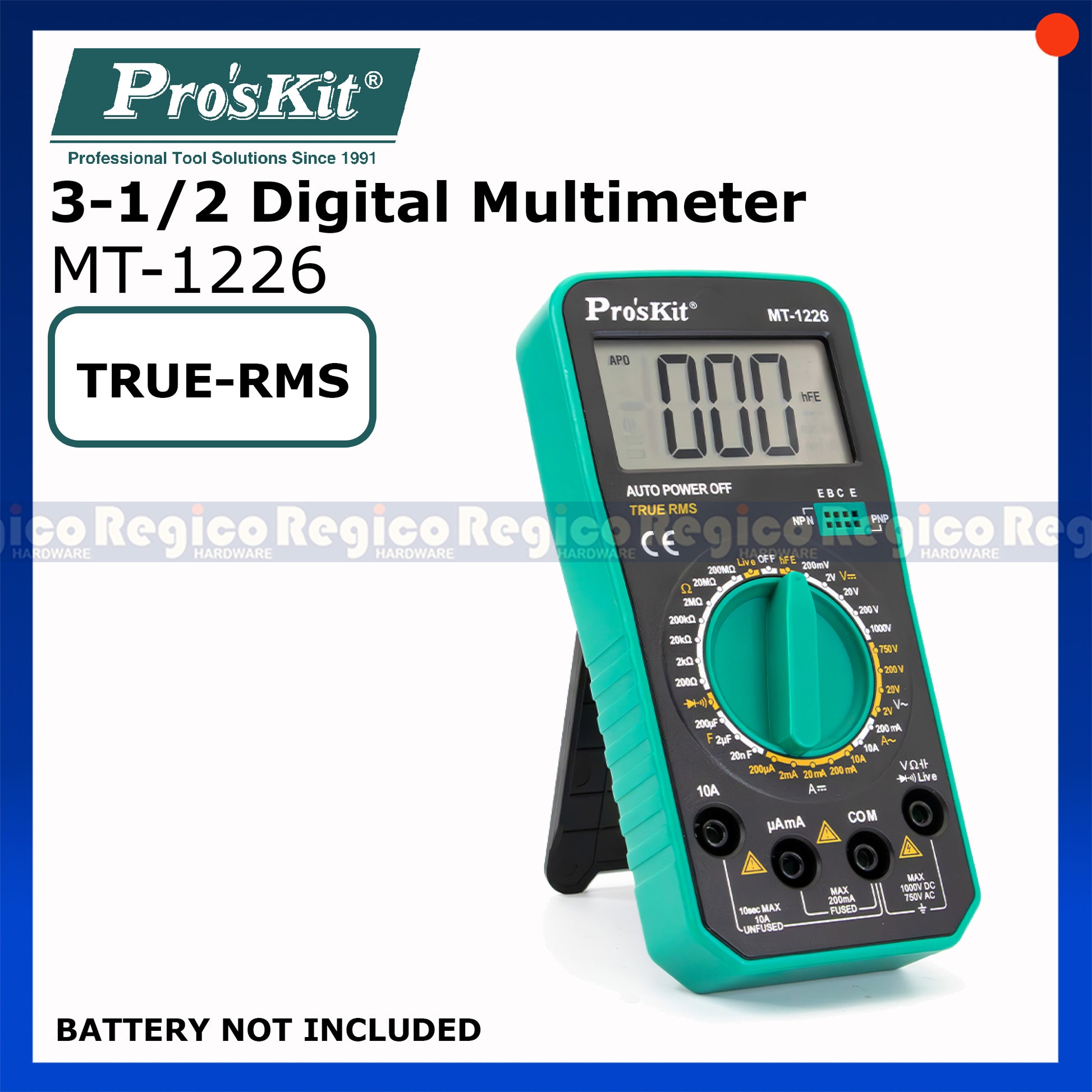

MT-1226
- LCD Display: 3-1/2" (1999)
- DC Voltage: 200mV/2V/20V/200V ± (0.5%+4); 1000V ± (0.8%+15d)
- AC Voltage: 2V/20V/200V ± (0.8%+4d); 750V ± (1.0%+15d); 40-1000Hz True RMS
- DC Current: 200μA/2mA/20mA/200mA ± (0.8%+5); 10A ± (1.5%+15)
- AC Current: 200mA ± (2.0%+15d); 10A(3.5%+15d); 40-1000Hz True RMS
- Resistance (Ω): 200Ω/2k/20k/200K/2M/20MΩ ± (1.0%+25d); 200MΩ +(5.0%+30d)
- Capacitance: 20nF/2μF ± (2.5%+20d); 200μF ± (5.0%+10d)
- Transistor Test: Yes
- Diode Test: Yes
- Continuity with Beeper: Yes
- Auto OFF: Yes (15 minutes)
- Low Battery Indication Yes
- Operation Environment: 0-40°C; < 80%RH
- Storage Environment -20-60°C; < 85%RH
- Power: 9V 6F22/ NEDA 1604 x 1
- BATTERY NOT INCLUDED
MT-1220
- DCV: 200mV / 2V / 20V / 200V ± (0.5% +5d) 600V ± (0.8% +5d)
- ACV: 200V ± (1.0% + 10d) / 600V ± (1.2% + 10d)
- DCA: 2mA / 20mA / 200mA ± (1.0% + 5d) , 10A ± (3.0% + 10d)
- Resistance ( Ω ): 200Ω / 2KΩ / 200KΩ / 2MΩ ± (1% + 3d) , 20mΩ ± (1.5% + 3d)
- Continuity Buzzer
- Diode Test: Yes
- Transistor Test: Yes
- NCV Detection
- Data Hold
- LED Light
- Low Battery Indicator: Yes
- Power: 3pcs x 1.5V AAA (Not Included)
- BATTERY NOT INCLUDED
