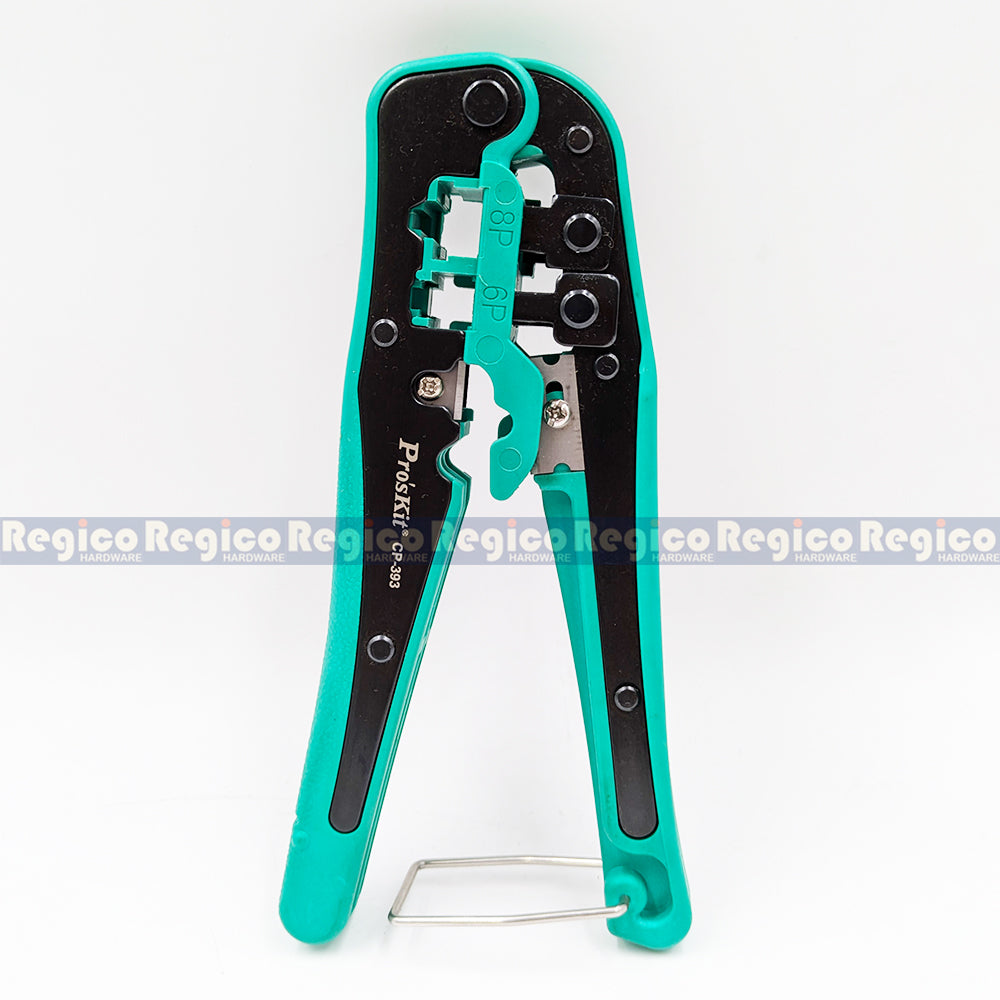

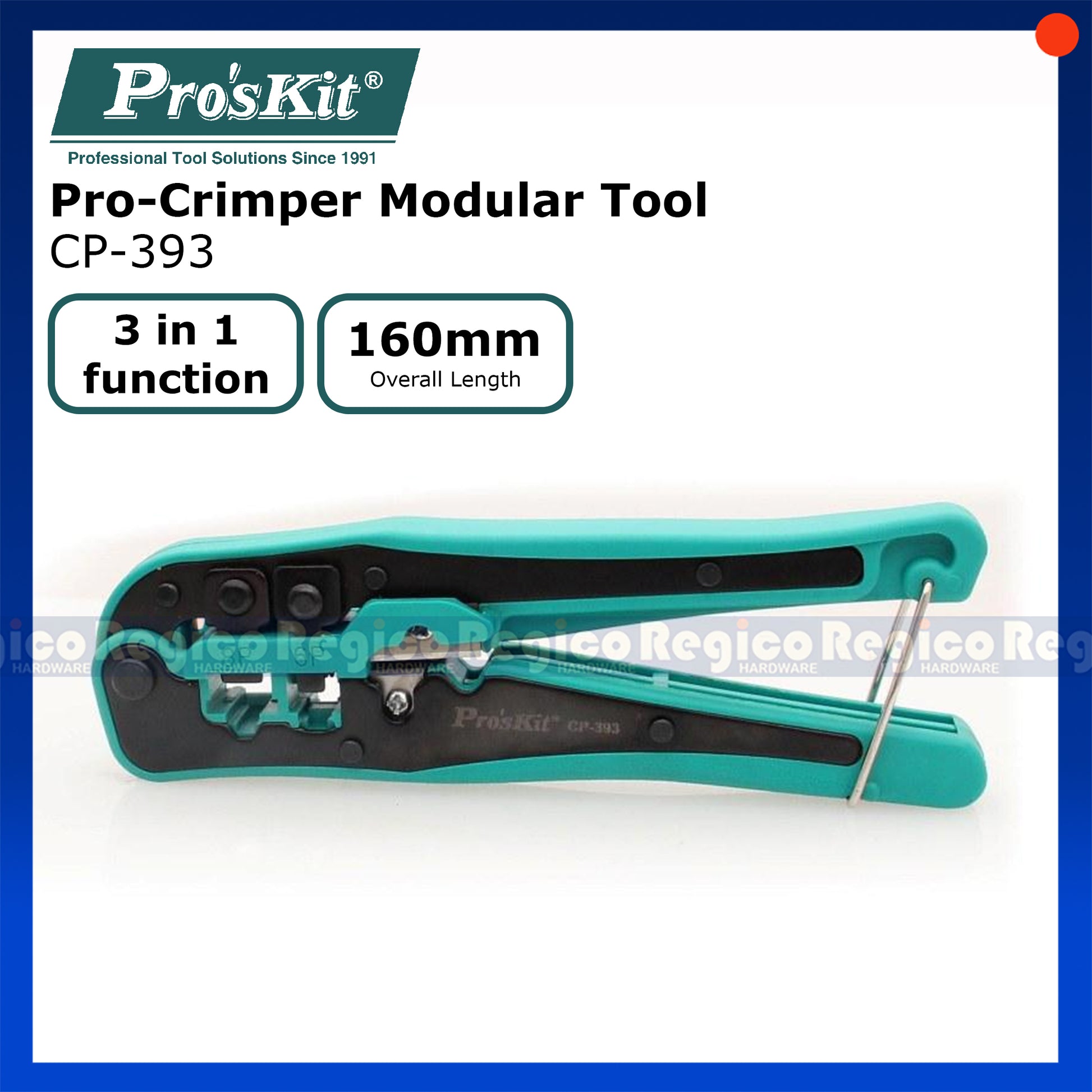

Cutting modular cable: Place the single-bladed side of the tool's cutter facing you and cut the modular cable to the desired length. Make sure to cut the ends of the cord straight across, not diagonally.
-
Stripping modular cable (Flat Cable):
-
2a. Insert 4P/6P cable into the two-bladed side of the tool's stripper until it touches the stop guide.
-
2b. Insert 8P cable into the two-bladed side of the tool's stripper and let it extend a little past the lower cut blade.
-
Squeeze handles until it stops cable must be kept perpendicular and then pull from the tool.
-
Stripping Round Cable Insert the cable into the round stripping hole, turn the crimper in counter clockwise direction and cable in clockwise at the same time.
-
Remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one and matches the right wire at the other end.
-

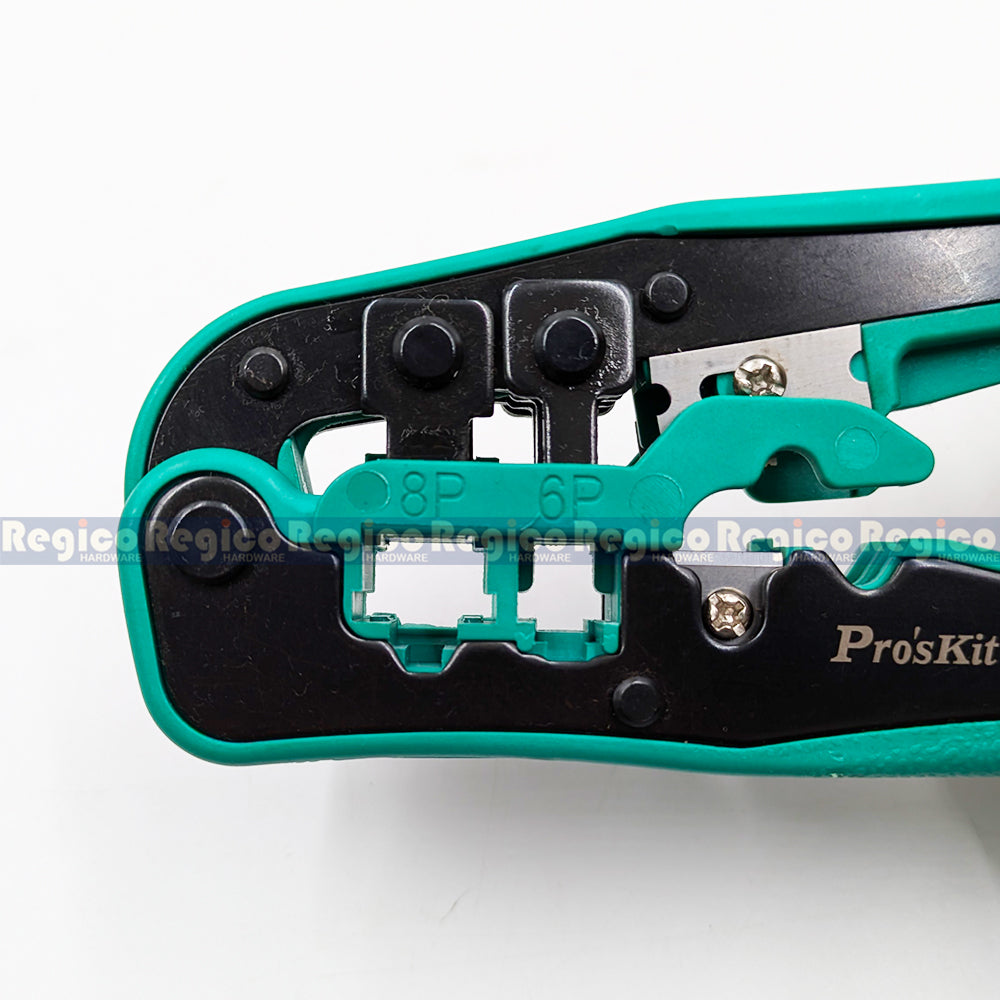

Place modular plug with cable into the tool's holder. Be sure the striped wire is between the tab and gold contacts. Squeeze handles until it stops.
-

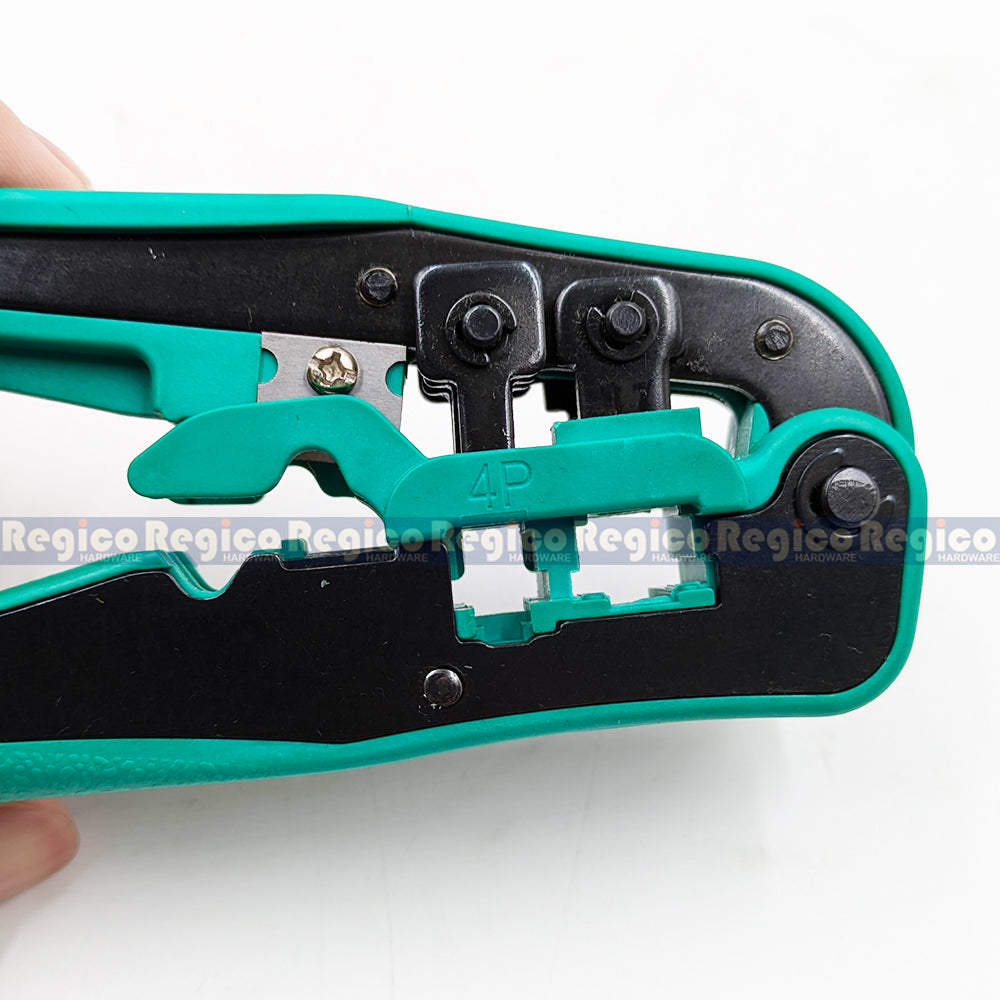

4p holder is located on the back side of the tool.
