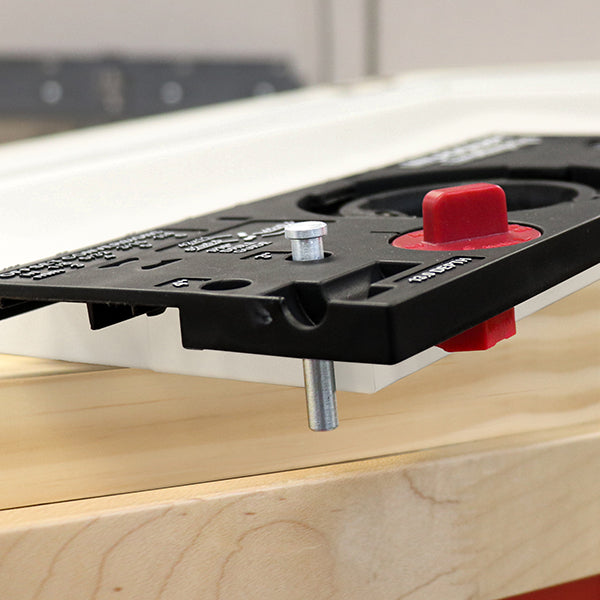

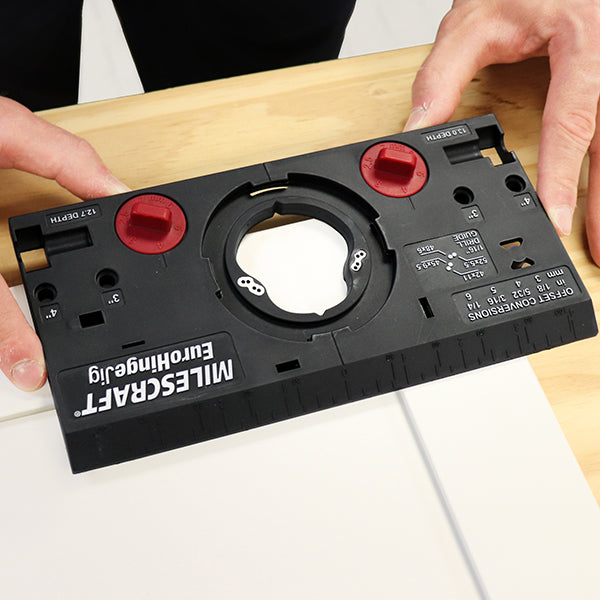

Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom
-

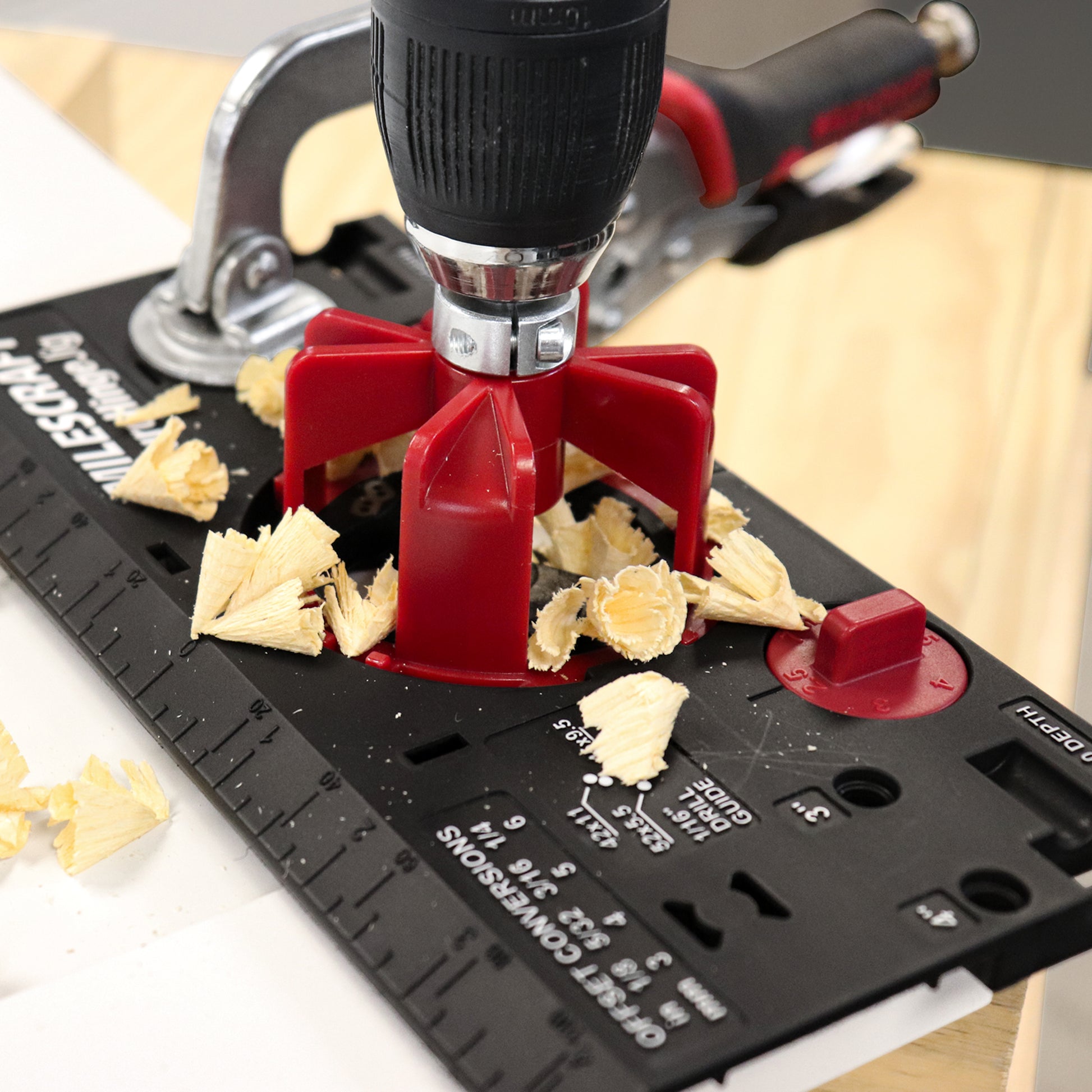

The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole
-
Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true
-
Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures
-

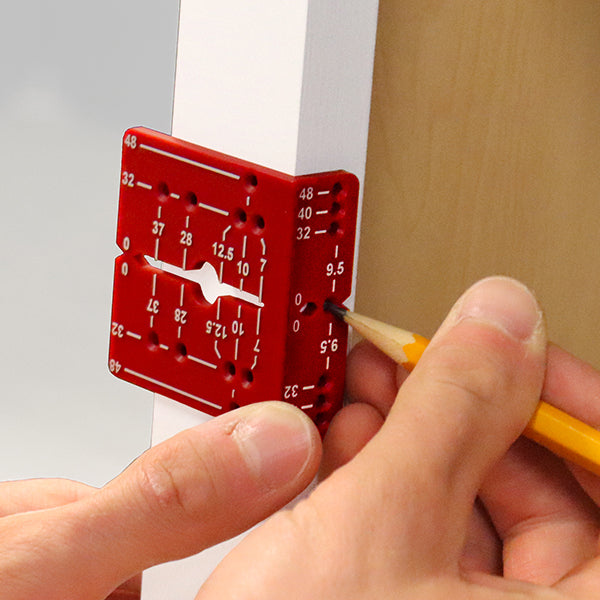

The hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge location to cabinet wall or frame
