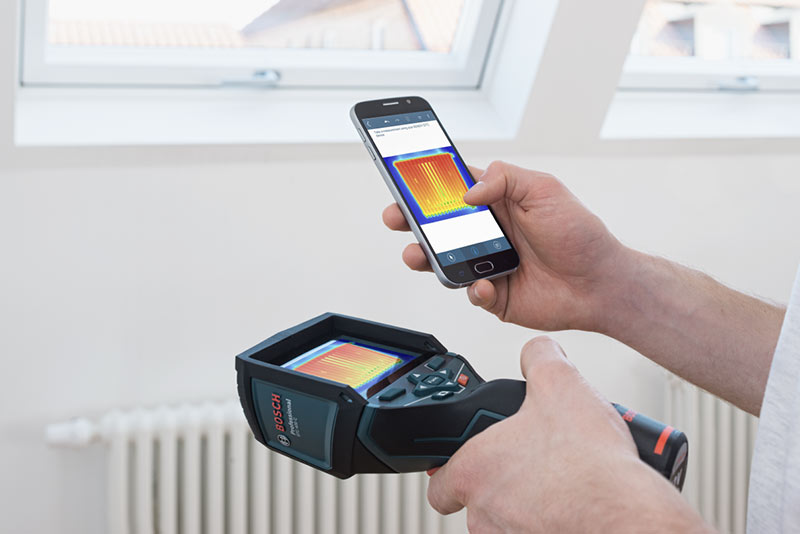

Fast exchange of data and easy documentation of thermal images with the Bosch Measuring Master app

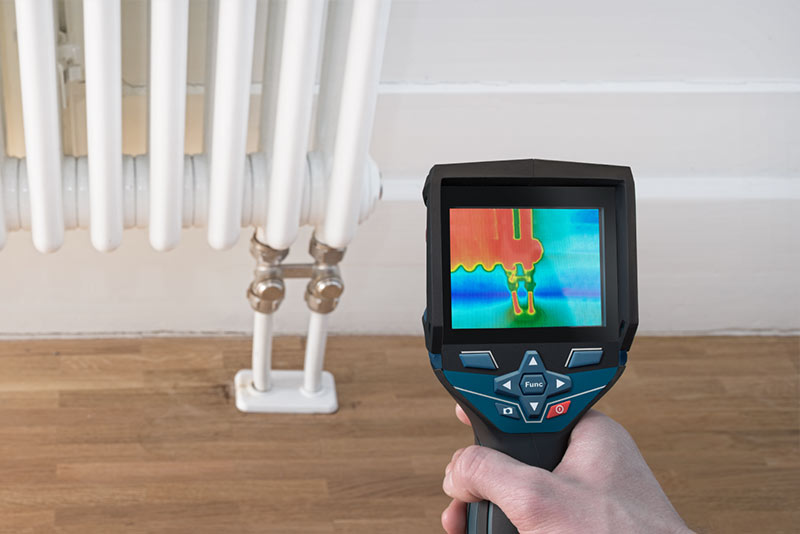

Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
Measurement range: -10 °C to +400 °C
Measuring accuracy of IR: ±3.0 °C
Resolution: 0.1 °C
Thermal sensitivity (NETD): <50 mK
Size of IR sensor: 160x120 px
Number of measuring points:19200
Frame buffer (number of images):500
Memory type: Internal memory
File format of image: .jpg
Dust and splash protection: IP 53
Display type:TFT LCD
Size of display: 3,5"
Operating temperature: -10 – 45 °C
Storage temperature:-20 – 70 °C
