3 x 360° bold green lines for optimal visibility. Simply connected.
1Bright green laser lines offer up to four times better visibility than red lines
2Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app

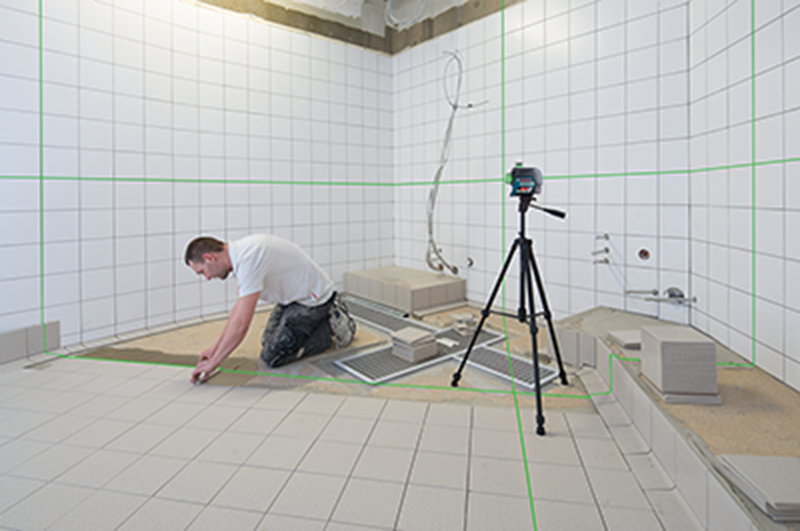

33 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work
Laser diode: 500 – 540 nm, < 10 mW
Operating temperature: -10 – 40 °C
Storage temperature: -20 – 70 °C
Laser class: 2
Working range: 30 m
Working range with receiver: 120 m (Diameter)
Working range without receiver: 30 m (Radius)
Accuracy: ± 0.2 mm/m
Self-levelling range: ± 4°
Levelling time: 4 s
Dust and splash protection: IP 54
Power supply: 12 V Li-Ion battery , 4 x 1.5 V LR6 (AA)
Tripod thread: 1/4", 5/8"
Weight, approx: 0.9 kg
Colour of laser line: green
Projection: 3 x 360° line
Compatible laser receivers: LR 7
1x Laser target plate
1x Pouch
1x Rotating mount RM 1 Professional
