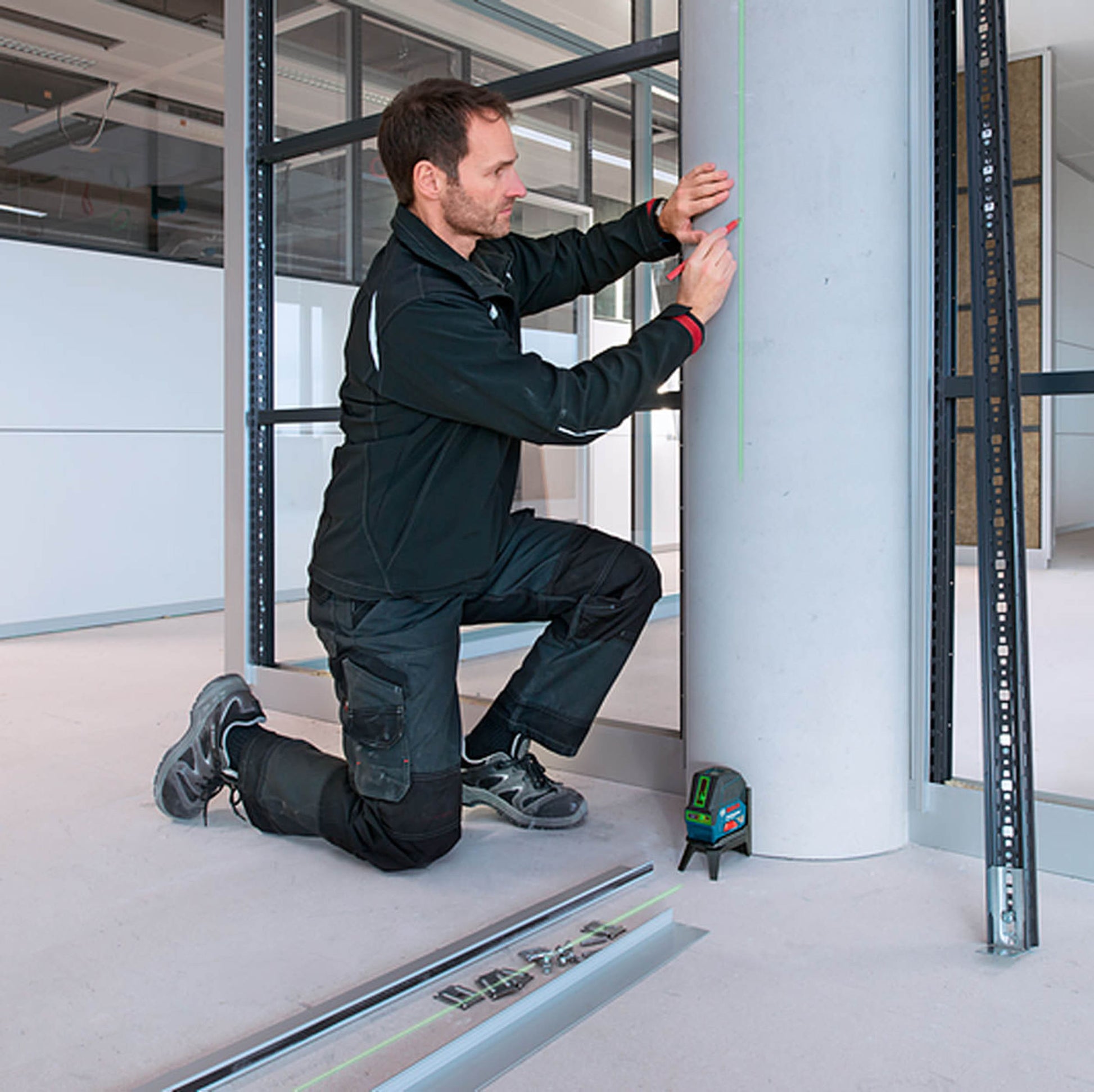

Four times better visibility thanks to green laser lines
-
Green horizontal and vertical lines for maximal visibility
-

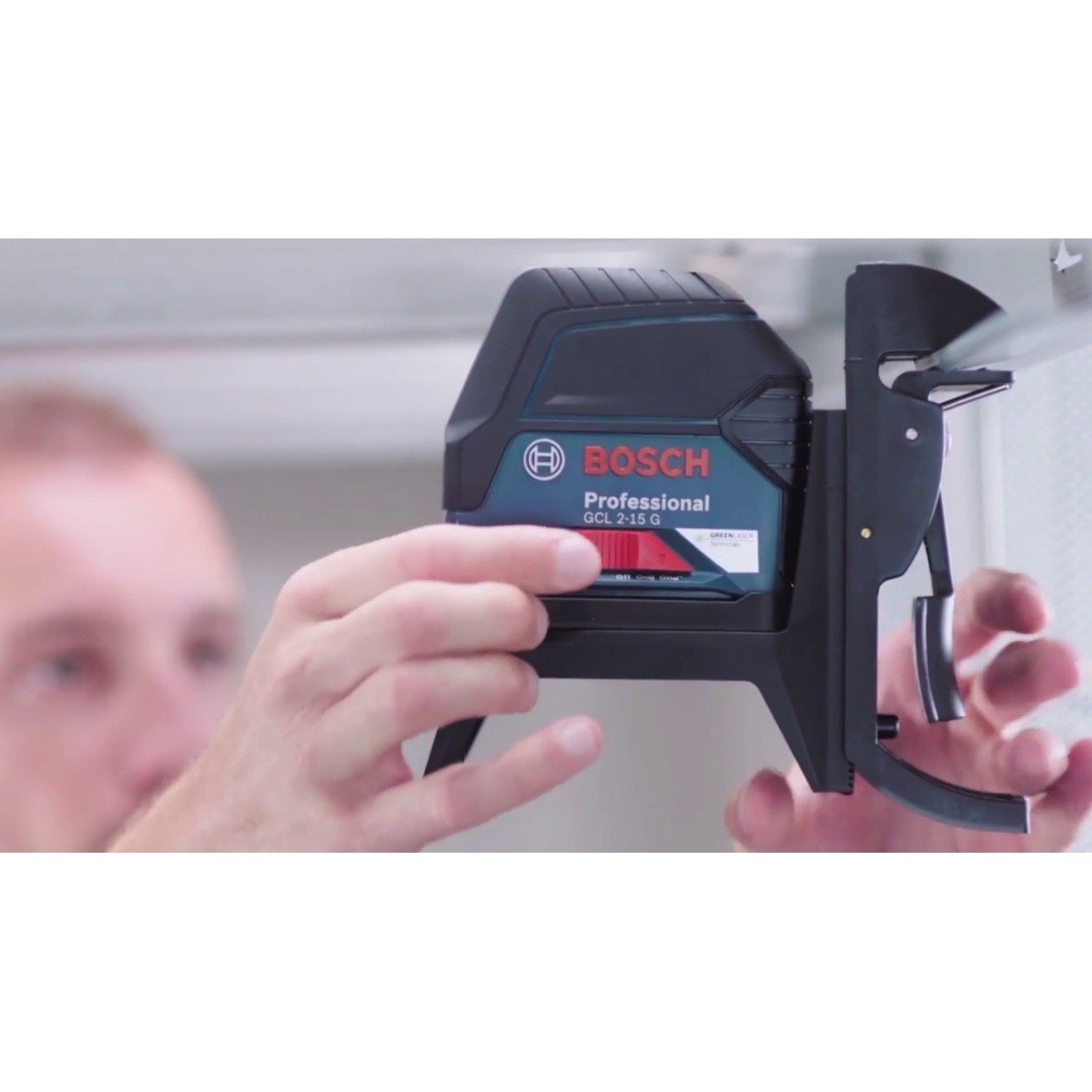

Multifunctional rotating mount for easy alignment of the laser lines around the plumb points
-
Red plumb points for precise transfer application
-
Working range: 15 m
-
Accuracy: ± 0.3 mm/m
-
Laser diode: Line: 500 – 540 nm, < 10 mW, Point: 630 – 650, < 1 mW
-
Operating temperature from: -10 °C
-
Operating temperature: up to 50 °C
-
Operating temperature: -10 – 50°C
-
Storage temperature, from: -20 °C
-
Storage temperature: up to 70 °C
-
Storage temperature: -20 – 70°C
-
Laser class: 2
-
Working range of laser points, max.: 10 m (top), 10 m (bottom)
-
Self-levelling range*: ± 4°
-
Levelling time: 4 s
-
Dust and splash protection: IP 54
-
Power supply: 3 x 1.5 V LR6 (AA)
-
Tripod thread: 1/4", 5/8"
-
Weight, approx.: 0.49 kg
-
Colour of laser line: green
-
Projection: 2 lines / 2 points
-
Plumb point accuracy ± 0.7 mm/m
-

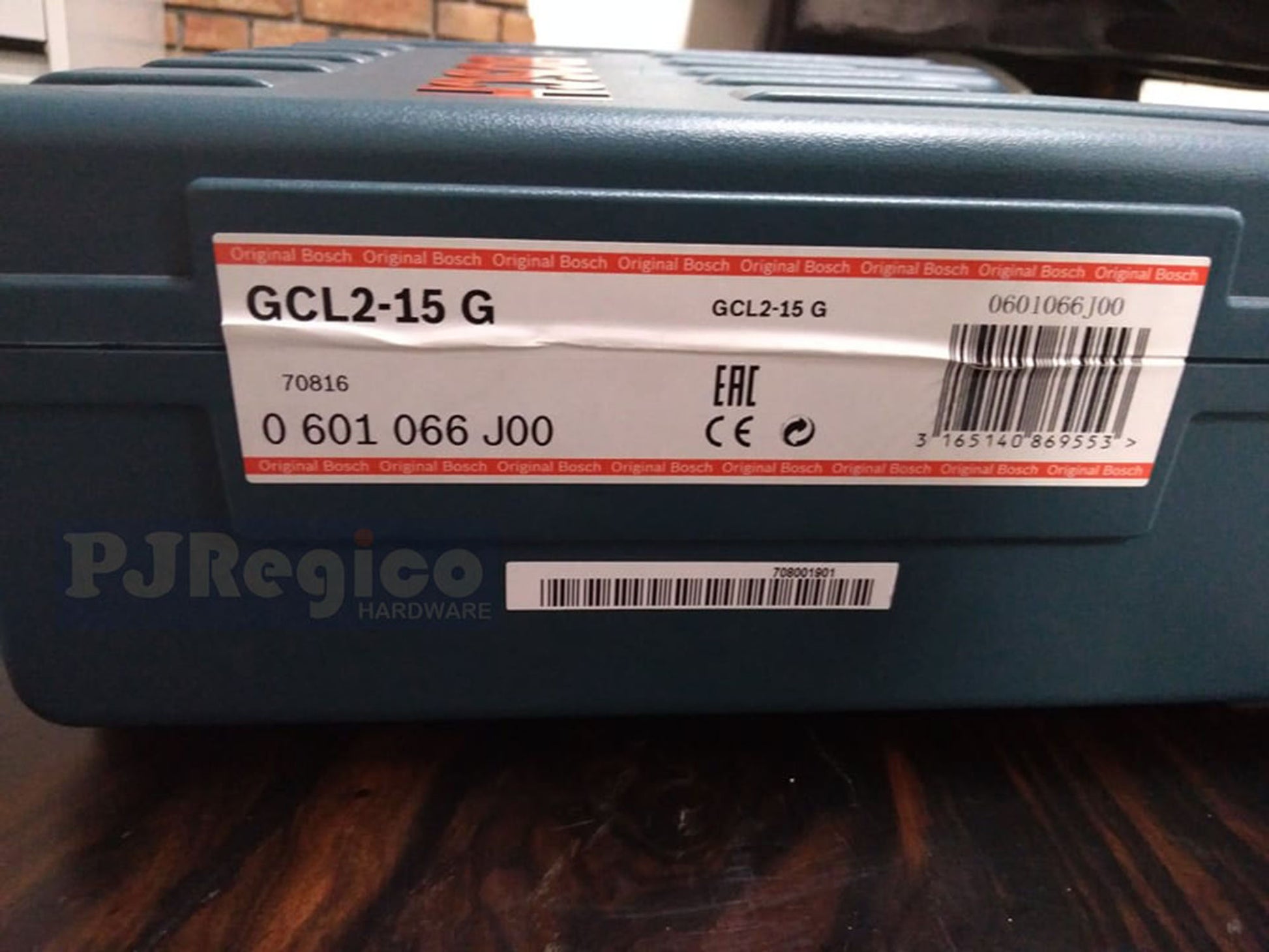

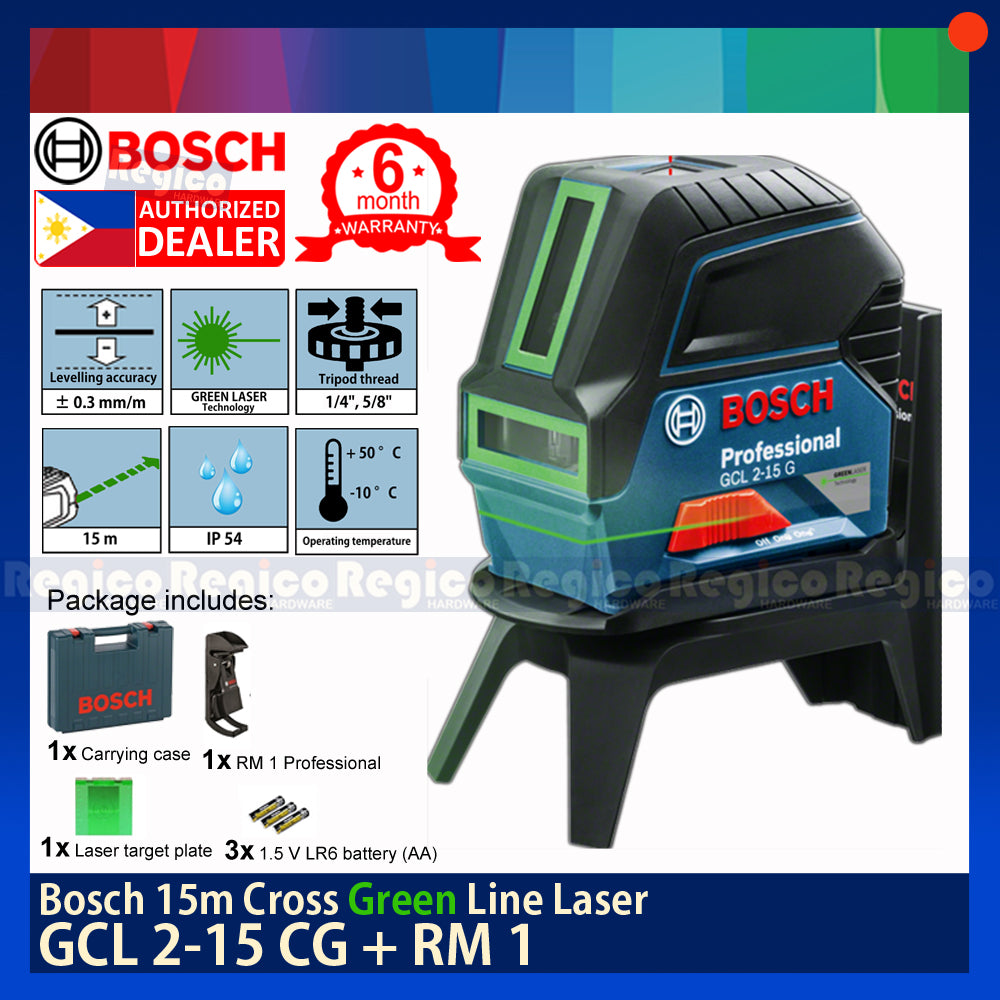

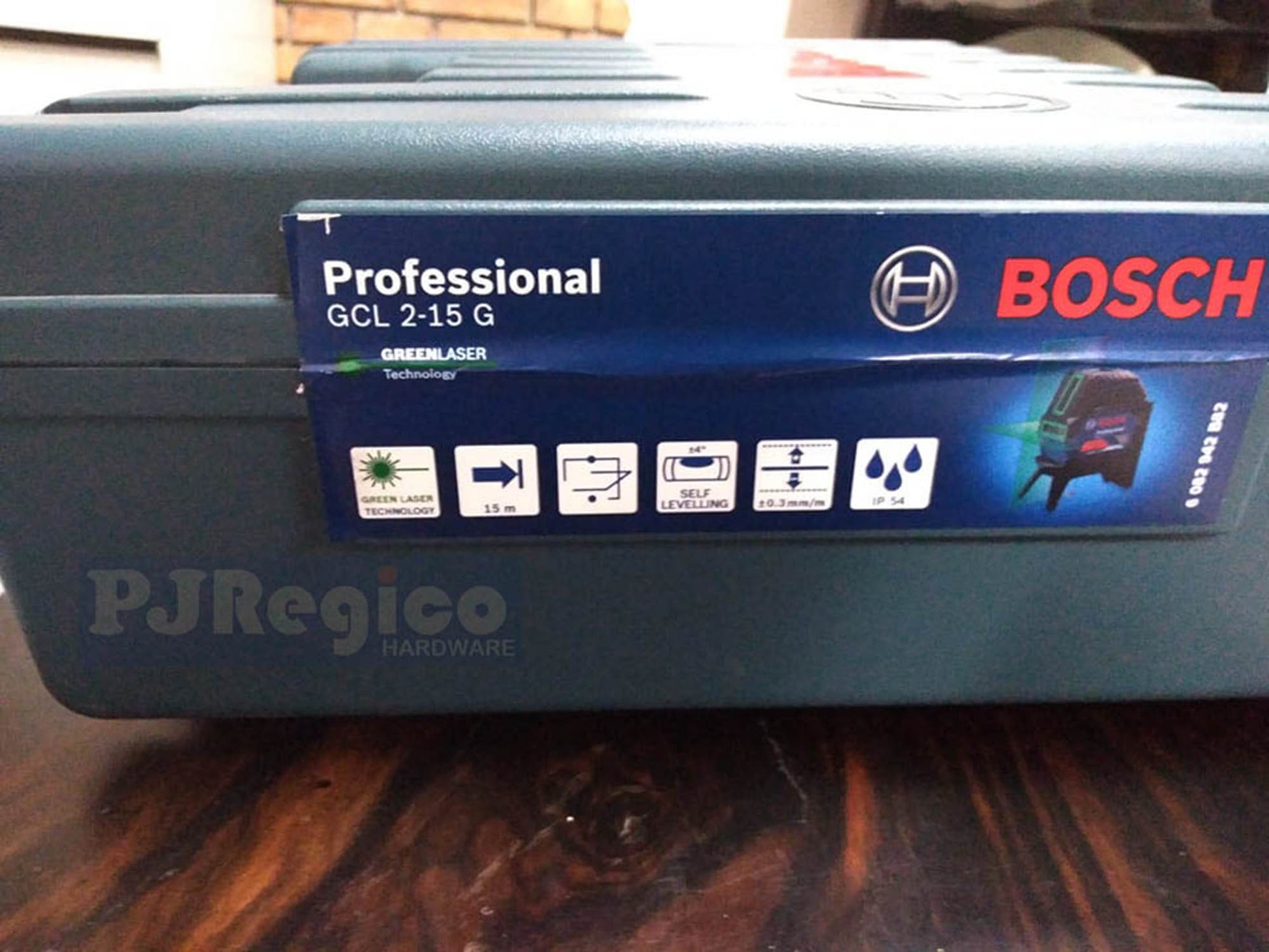

1x Carrying case
-
1x Laser target plate
-
1x Rotating mount RM 1 Professional
-
3x 1.5 V LR6 battery (AA)
