Scan and spot the unseen.
-
More depth for better safety - Increased maximum detection depth to 200mm with object depth indication
-
All-round detection - Detection of all common objects, even in narrow spots with the unique spot mode
-
See the unseen - Clear visualisation of detected objects including the new leakage detection function through the intuitive HMI
Product Highlights
The D-tect 200 Professional detects all common objects and illustrates them clearly while making documentation easy. Equipped with Bosch Radar Technology and an improved HMI, it stands for safer and more precise detection. Multiple view options allow the ideal application for different situations, such as Spot View, that makes detection in hard-to-reach locations easier. The detector enables instant documentation which allows data to be transferred via USB-C or MicroSD-Card connection.
Equipment & Application

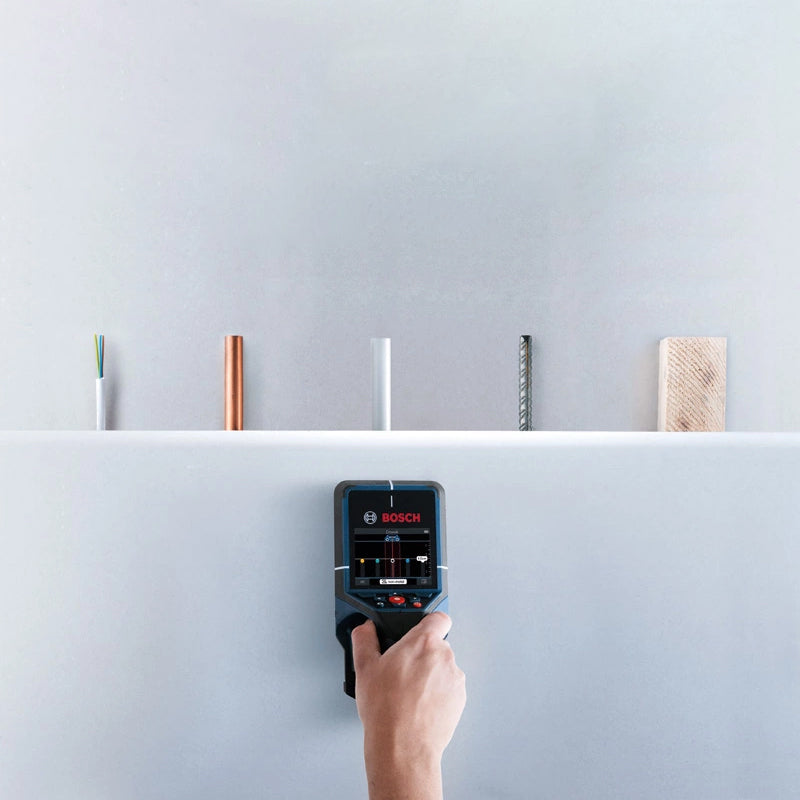

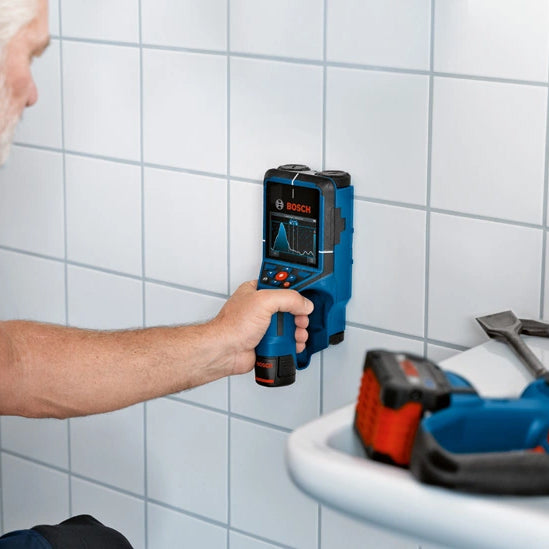

The D-tect 200 Professional supports all round detection, enabling safer construction work during drilling.
Additional Information
The D-tect 200 Professional detects objects in depths of up to 200 mm and indicates the object´s depth.
Additional data
|
|
Dust and splash protection
|
IP 5X
|
|
Bosch Radar Technology
|
yes
|
|
Max. detection depth
|
200 mm
|
|
Detectable objects
|
magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, low-voltage & data cables (Three-phase power cables, cavities), non-live cables, wooden substructures, water-filled plastic pipes, Empty plastic pipes
|
|
Detection depth, dry concrete, max.
|
200 mm
|
|
Detection depth, early age concrete, max.
|
60 mm
|
|
Detection depth, other wall types, max.
|
80 mm
|
|
Detection depth, magnetic metal, max.
|
200 mm
|
|
Detection depth, non-magnetic metal, max.
|
80 mm
|
|
Detection depth, live cables, max.
|
80 mm
|
|
Detection depth, wooden substructures, max.
|
38 mm
|
|
Accuracy
|
±5 mm
|
|
Views
|
Object view, Spot view, Signal View, Signal View 2D
|
|
Wall types
|
Concrete, Early age concrete, Drywall, Brick/Universal, Horizontal coring brick, Vertical coring brick, Panel Heating
|
|
Documentation via
|
USB-C, SD-Card
|
|
Updatable
|
yes
|
|
Material identification
|
Magnetic metal, Non-magnetic metal, Non-metal material, Live cable
|
|
Power supply
|
12 V Li-Ion battery, 10.8 V-LI ION battery, 4 x 1.5 V LR6 (AA)
|
|
Weight, approx.
|
0.64 kg
|
|
Additional function
|
Leakage detection, distance measurement
|
